    Epoxy Resin Outdoor Voltage Transformer Outdoor Voltage Transformers

    PRODUCT INTRODUCTION

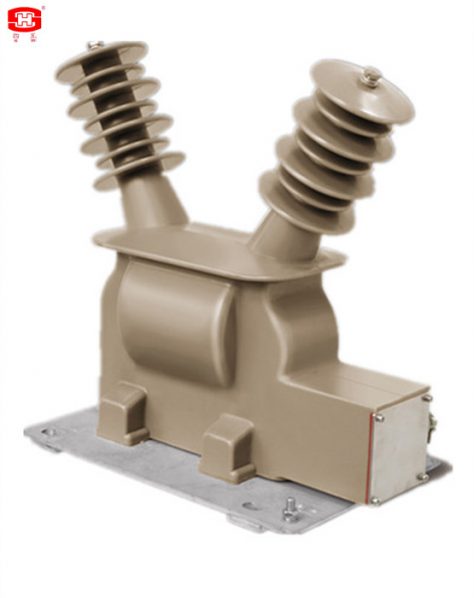

    JDZW25(G)-20 is single phase and epoxy resin silicon rubber insulated voltage transformer.

    PRODUCT DETAILS

    Outdoor voltage transformer of the type JDZW25(G)-20 is single phase and epoxy resin silicon rubber insulated product, it's used for metering electric energy, voltage control and relay protection in 50/60HZ rated voltage 20kV electric system.

    It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~60℃), high altitude, high humidity, high pollution or salt).

    Outdoor Voltage Transformer Main Technical Parameters

    Rated   Primary

    Voltage

    (kV)

    Rated   Secondary Voltage

    (kV)

    Accuracy   Classes

    Rated   Outputs

    (VA)

    cosΦ=0.8

    Total   Limited Output

    (VA)

    13.8

    15

    15.75

    20

    22

    0.1

    0.11

    0.115

    0.12

    0.22

    0.23

    0.2

    10

    250

    0.5

    30

    1.0

    60

    3.0

    120

    Notes:1) The data listed in the above table are the normal ones, or we can design them according to the customers’ special requirements.

              2)Standards: GB 20840.3 & IEC 61869-3.

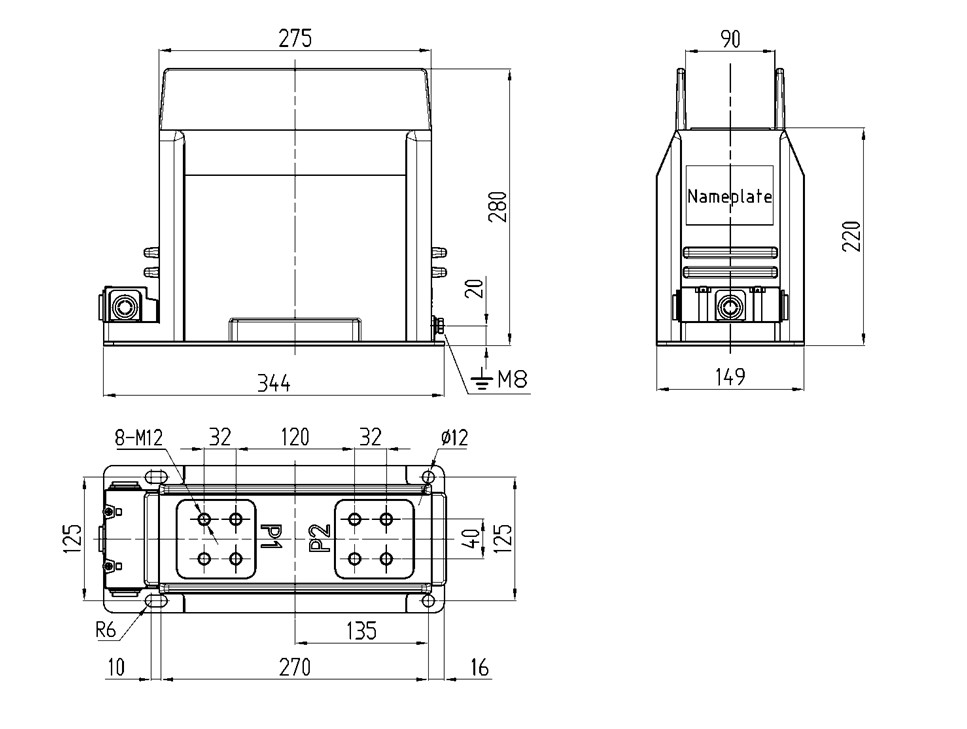

    Outline drawing and installation dimensions
